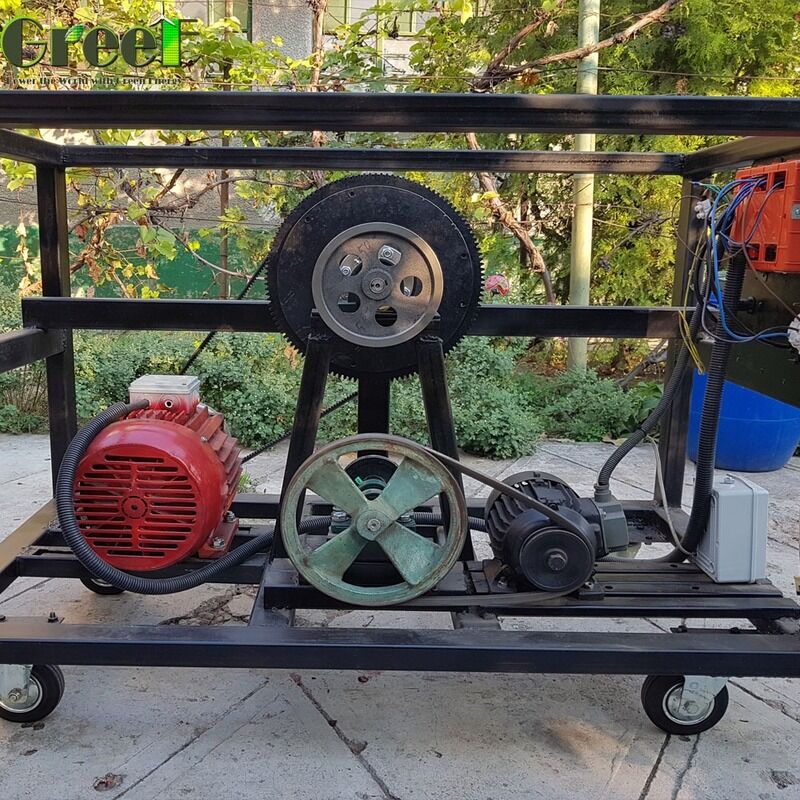

IP54 Protection Three Phase AC Permanent Magnet Generator with Fan Cooling for Industrial Applications

Nama merek:

Greef

Sertifikasi:

Model Number:

GDF

Hubungi Kami

Minta Kutipan

Rincian produk

Tingkat IP:

IP67

Tipe magnet:

NdFeB

Jenis pembangkit:

3 Phase AC Permanen-magnet

Kelas porsi:

IP 54

Tipe saat ini:

Kecepatan rotor terukur:

20-3000RRM

Merek Baering:

SKF

Tiang:

2-48

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1 Set

Harga

Bisa dinegosiasikan

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T

Produk-produk terkait

video

High Efficiency Permanent Magnet Generator with Low RPM and IP54 Protection for Stable Power Output

Dapatkan Harga Terbaik

video

IP54 Protected Permanent Magnet Generator with 20rpm-3000rpm Rated Speed for Horizontal or Vertical Installation

Dapatkan Harga Terbaik

video

High Efficiency Permanent Magnet Generator with 2 to 48 Poles and 20rpm-3000rpm Speed Range

Dapatkan Harga Terbaik

video

High Efficiency Permanent Magnet Generator with NdFeB Magnet Type and IP54 Protection Grade for Reliable Power Generation

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

IP 54 Three Phase Fan Cooling Motor Designed for Industrial Applications

The fundamental concept behind a permanent magnet generator lies in the rotor incorporating permanent magnet materials to produce a steady magnetic field. This magnetic field remains constant as the rotor spins.

When a prime mover, which could be a wind turbine, water turbine, or engine, causes the rotor to turn, the magnetic field created by the permanent magnets rotates accordingly. As this magnetic field moves, it intersects with the conductors located in the stator windings.

Based on the law of electromagnetic induction, the movement of the magnetic field through the stator conductors induces an electromotive force within the stator windings. By connecting an external electrical circuit, the generator can then deliver electrical power to a load.

Key Features

Direct drive system with simple design, no gearbox required, brushless mechanism
Enhanced reliability and reduced maintenance requirements
Efficiency exceeding 95% with power factor approaching 1
Nd-Fe-B permanent magnets for smooth operation in both clockwise and anticlockwise directions
Capable of generating high voltage and substantial power output at low speeds
Durable construction ensuring operational lifespan of over 20 years
Supports continuous 24/7 operation throughout the year
Customization options available for voltage, speed, power, and frequency
3-year free warranty with lifetime service support

Technical Specifications

Parameter	Specification
Rated Power	0.5 kW to 5000 kW
Rated Rotational Speed	20 to 3000 rpm
Operating Frequency	50 to 60 Hz
Number of Poles	2 to 48
Generator Type	3-phase AC synchronous with NdFeB magnets
Winding Method	Y-connection
Temperature Limits	Magnets: 120℃ max, Winding: 180℃ max
Efficiency	Over 95%
Insulation Grade	H (100 MΩ minimum at 500 V DC)
Protection Rating	IP54
Shell Material	Cast iron
Key Materials	100% copper winding, steel shaft, cold rolled silicon steel sheets
Bearings	SKF brand
Cooling System	Fan cooling
Net Weight	Approximately 1200 kg
Installation	Horizontal or vertical orientation

Applications

Wind Power Generation: Core components in direct-drive and semi-direct-drive wind turbines
Marine and Offshore: Ship shaft generators and main/auxiliary power systems
Backup Power Systems: Integration with diesel and gas generator sets
High-Speed Applications: Microturbines and flywheel energy storage systems
Industrial Settings: Special-purpose applications requiring high power density and reliability

Customization Services

Greef offers customized Permanent Magnet Generator solutions tailored to your specific requirements. Our GDF model features CE certification and LOW START TORQUE design for superior performance.

With rated rotation speeds from 20rpm to 3000rpm, our generators utilize high-quality NdFeB magnets and SKF bearings for maximum durability and efficiency. Both horizontal and vertical installation configurations are available.

We provide flexible pricing with negotiable terms and minimum order quantity of just 1 set. Delivery time is typically 25 working days with payment terms based on T/T.

Packaging & Shipping

Product Packaging: Each generator is secured in custom-fitted foam inserts, wrapped in anti-static plastic, and boxed in sturdy double-walled corrugated cardboard cartons with clear labeling and additional padding for delicate components.

Shipping: We provide reliable shipping with tracking and insurance through trusted carriers specializing in industrial equipment. International shipments include complete customs documentation and export compliance paperwork. Shipping confirmation and tracking information provided upon dispatch.
