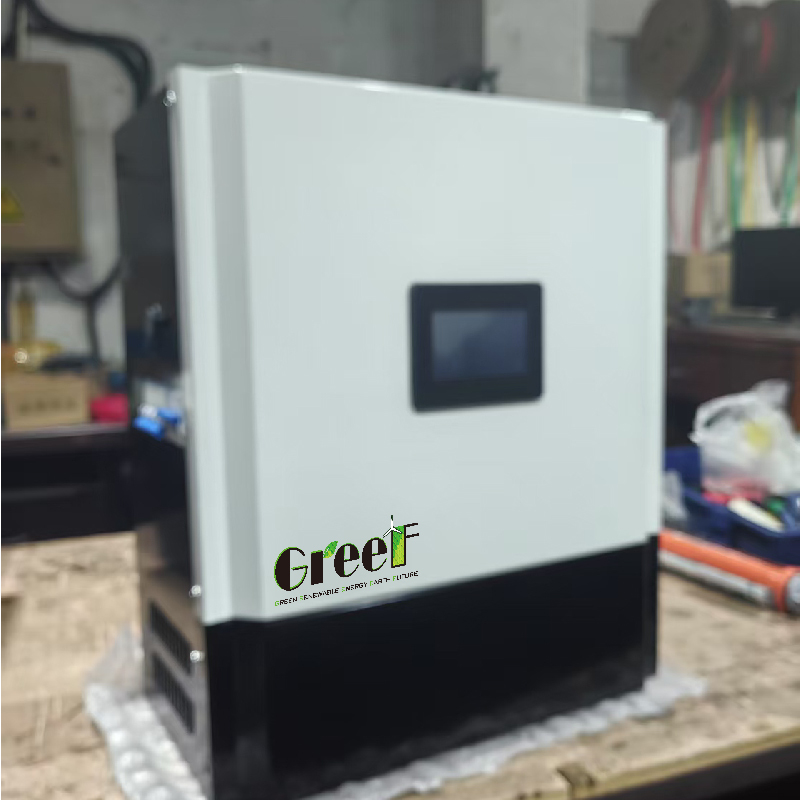

Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac

Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac

Pengontrol off-grid 5KW MPPT

pengontrol off-grid 30KW 380Vac

MPPT dari pengontrol jaringan 48Vac

Nama merek:

Greef

Sertifikasi:

CE

Model Number:

AHCC

Hubungi Kami
Minta Kutipan
Rincian produk
Tegangan Dinilai:
48VAC-380VAC
Tegangan sistem nominal:
42-240VDC/200-1000VDC (parameter dapat disesuaikan tergantung pada jenis penyimpanan energi)
Nilai tenaga angin:
5KW/10KW/20KW/30KW
Perlindungan input:
Sekering; Sirkuit Perlindungan Petir
Kisaran tegangan MPPT:
90 ~ 520V Disesuaikan/220 ~ 530VAC
Tinggi di atas permukaan laut:
Output beban penuh 3000m
Jenis baterai:
Baterai asam timbal, baterai lithium, bar bus DC, dll.
Maksimum menahan Tegangan:
290VAC-530VAC/600VAC selama 5 detik
Menyoroti:

Pengontrol off-grid 5KW MPPT

,

pengontrol off-grid 30KW 380Vac

,

MPPT dari pengontrol jaringan 48Vac

Syarat Pembayaran & Pengiriman
Minimum Order Quantity
1Set
Harga
Bisa dinegosiasikan
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Syarat-syarat pembayaran
T/T, Western Union, MoneyGram, L/c
Supply Ability
Supply Ability
Deskripsi Produk
Pengontrol Off-Grid Greef untuk Sistem Tenaga Angin
Tegangan tahan maksimum: 290Vac-530Vac/600Vac Selama 5 Detik | Tegangan terukur: 48Vac-380Vac
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 0
Deskripsi Produk
Pengontrol Off-grid adalah komponen paling penting dalam sistem generator angin, yang bertanggung jawab untuk mengubah arus AC tiga fase dari turbin angin menjadi arus DC untuk mengisi bank baterai.
Pengontrol off-grid angin GREEF meningkatkan produksi listrik melalui teknologi MPPT khusus, yang menampilkan:
  • Desain modular canggih untuk konfigurasi fleksibel
  • Isolasi listrik untuk keselamatan
  • Kemampuan pembongkaran PWM
  • Integrasi kontrol komputer host
  • Antarmuka layar sentuh besar
  • Fungsi IoT untuk pemantauan jarak jauh
Aplikasi
Pengontrol Off-Grid AHCC dirancang untuk berbagai sistem energi terbarukan:
  • Sistem pembangkit listrik tenaga angin
  • Sistem pembangkit listrik tenaga air
  • Sistem pembangkit listrik tenaga surya
Ini mengoptimalkan kinerja dan efisiensi dengan menyediakan kemampuan kontrol dan pemantauan yang andal yang disesuaikan untuk setiap sumber energi terbarukan.
Spesifikasi Teknis
Model AHCC-5KW AHCC-10KW AHCC-20KW AHCC-30KW
Daya terukur 5KW 10KW 20KW 30KW
Jenis Produk MPPT, konverter energi baru terisolasi frekuensi tinggi
Sisi Output DC
Jenis penyimpanan energi Baterai timbal-asam, baterai lithium, busbar DC, dll.
Arus output terukur 100A 200A 80A 150A
Rentang Tegangan Output 42-240Vdc (dapat disesuaikan) 200-1000Vdc (dapat disesuaikan)
Akurasi stabilisasi tegangan ≤±0.5%
Akurasi stabilisasi ≤±1%
Sisi Input Turbin Angin
Tegangan terukur 48Vac-380Vac 380Vac
Tegangan tahan maksimum 290Vac-530Vac selama 5 detik 600Vac selama 5 detik
Rentang tegangan MPPT 90~520V disesuaikan 220~530Vac
Daya maksimum 10kW 20kW 40kW 60KW
Arus Input Terukur 40Aac 80Aac 40Aac 80Aac
Perlindungan input Sekering; sirkuit penangkal petir
Sisi Pembongkaran
Metode pembongkaran PWM
Arus pembongkaran terukur 40Adc 100Adc 50Adc 100Adc
Arus tahan maksimum 60A 200A 200A 400A
Kondisi Lingkungan Kerja
Suhu sekitar -25℃~50℃
Suhu penyimpanan -40℃~75℃
Kelembaban relatif 0 hingga 95%
Ketinggian di atas permukaan laut Output beban penuh 3000m
Antarmuka komunikasi Standar: RS485/TCP
Ukuran pengontrol (mm) 485×267×450mm 343×605×970mm
Berat Pengontrol 29.5kg 38.5kg 61.5Kg 71.5Kg
Ukuran beban Dump (mm) 695×131×194mm 700×450×750mm 820×620×900mm 900 x 700 x 1270mm
Berat beban Dump 18kg 40kg 80kg 120Kg
Gambar Produk
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 1
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 2
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 3
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 4
Solusi Sistem
Kami dapat menyesuaikan sistem sesuai dengan kebutuhan spesifik Anda.Silakan hubungi kami untuk mempelajari lebih lanjut tentang produk kami.
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 5
Pengemasan Produk
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 6
