Rumah > Produk > Off Grid Controller >

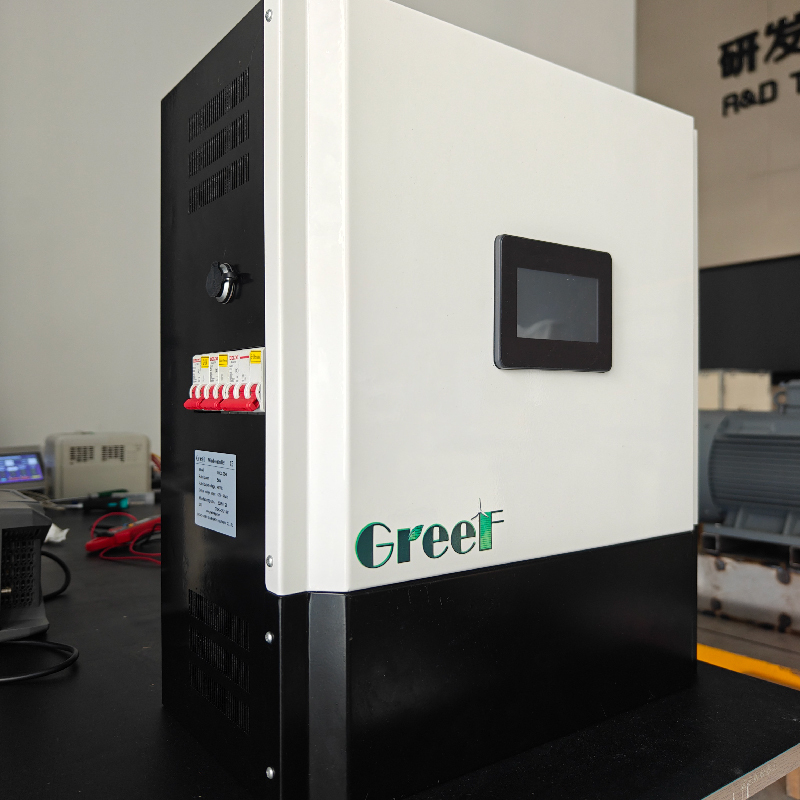

Pengontrol Off-Grid Angin AHCC 40Aac/80Aac MPPT untuk Sistem 5KW-30KW

Pengontrol Off-Grid Angin AHCC 40Aac/80Aac MPPT untuk Sistem 5KW-30KW

Pengontrol off-grid MPPT 40A

80A Mppt Solar Charge Controller

Pengontrol sistem off-grid 5KW-30KW

Nama merek:

Greef

Sertifikasi:

CE

Model Number:

AHCC

Hubungi Kami
Minta Kutipan
Rincian produk
Arus input dinilai:
40AAC/80AAC
Nilai tenaga angin:
5KW/10KW/20KW/30KW
Maksimum menahan Tegangan:
290VAC-530VAC/600VAC selama 5 detik
Kisaran tegangan MPPT:
90 ~ 520V Disesuaikan/220 ~ 530VAC
Tegangan Dinilai:
48VAC-380VAC
Aplikasi:
Tata Surya atau Turbin Angin atau Sistem Generator
Antarmuka komunikasi:
Standar: RS485/TCP
Jenis baterai:
Baterai asam timbal, baterai lithium, bar bus DC, dll.
Menyoroti:

Pengontrol off-grid MPPT 40A

,

80A Mppt Solar Charge Controller

,

Pengontrol sistem off-grid 5KW-30KW

Syarat Pembayaran & Pengiriman
Minimum Order Quantity
1Set
Harga
Bisa dinegosiasikan
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Syarat-syarat pembayaran
T/T, Western Union, MoneyGram, L/c
Supply Ability
Supply Ability
Deskripsi Produk
Kontrol sistem angin Anda dengan kontroler angin AHCC Nominal Input Current 40Aac/80Aac
Deskripsi Produk
Pengontrol angin off-grid GREEF adalah komponen penting dalam sistem generator angin, mengubah arus AC tiga fase dari turbin angin menjadi arus DC untuk mengisi bank baterai.Dengan teknologi MPPT khusus, pengontrol ini secara signifikan meningkatkan produksi listrik sambil menggabungkan fitur canggih seperti desain modular, isolasi listrik, PWM unloading, dan kontrol komputer host.
Dengan layar sentuh besar dan fungsionalitas IoT, pengontrol GREEF memungkinkan pembangkit listrik yang efisien, aman, dan cerdas sambil mendukung manajemen operasi dan pemeliharaan yang komprehensif.
Fitur Utama
  • Pelacakan daya:MPPT energi angin dengan keterlibatan 98% dengan kurva output energi angin yang sebenarnya untuk peningkatan produksi listrik
  • Perlindungan Keamanan:Proteksi overvoltage, overcurrent, anti-reverse connection, dan short circuit
  • Fungsi IoT:Dukungan jaringan kabel dengan tampilan dan kontrol jarak jauh APP, ditambah kemampuan ekspor data jarak jauh
  • Antarmuka layar sentuh:Menampilkan tegangan, arus, daya, pembangkit listrik, dan status operasi dengan pertanyaan alarm dan tinjauan data historis
  • Sirkuit penyerapan daya khusus:Desain modular, hot-swappable dengan isolasi listrik input / output dan efisiensi tinggi pada kecepatan angin rendah
  • PWM Pengungkapan:Fener mode self-powered dengan respon cepat, kecepatan / torsi pembatasan dan penyesuaian soft unloading
Spesifikasi Teknis
Model AHCC-5KW AHCC-10KW AHCC-20KW AHCC-30KW
Kekuatan nominal 5KW 10KW 20KW 30KW
Jenis Produk MPPT, konverter energi baru frekuensi tinggi yang terisolasi
Sisi Keluar DC
Jenis penyimpanan energi Baterai asam timbal, baterai lithium, bar bus DC, dll.
Listrik output nominal 100A 200A 80A 150A
Jangkauan Tegangan Keluar 42-240Vdc (diatur) 200-1000Vdc (diatur)
Sisi Masuk Turbin Angin
Tegangan nominal 48Vac-380Vac 380 VAC
Tegangan tahan maksimum 290Vac-530Vac selama 5 detik 600Vac selama 5 detik
Rentang tegangan MPPT 90 ~ 520V disesuaikan 220 ~ 530Vac
Kekuatan maksimum 10kW 20kW 40kW 60KW
Listrik Masuk Nominal 40Aac 80Aac 40Aac 80Aac
Kondisi Lingkungan Kerja
Suhu lingkungan -25°C-50°C
Suhu penyimpanan -40°C~75°C
Kelembaban relatif 0 sampai 95%
Gambar Produk
Pengontrol Off-Grid Angin AHCC 40Aac/80Aac MPPT untuk Sistem 5KW-30KW 0 Pengontrol Off-Grid Angin AHCC 40Aac/80Aac MPPT untuk Sistem 5KW-30KW 1 Pengontrol Off-Grid Angin AHCC 40Aac/80Aac MPPT untuk Sistem 5KW-30KW 2 Pengontrol Off-Grid Angin AHCC 40Aac/80Aac MPPT untuk Sistem 5KW-30KW 3
Solusi Sistem
Kami dapat menyesuaikan sistem untuk kebutuhan spesifik Anda.Silakan hubungi kamiuntuk belajar lebih banyak tentang produk kami.
Pengontrol Off-Grid Angin AHCC 40Aac/80Aac MPPT untuk Sistem 5KW-30KW 4
Kemasan Produk
Pengontrol Off-Grid Angin AHCC 40Aac/80Aac MPPT untuk Sistem 5KW-30KW 5
