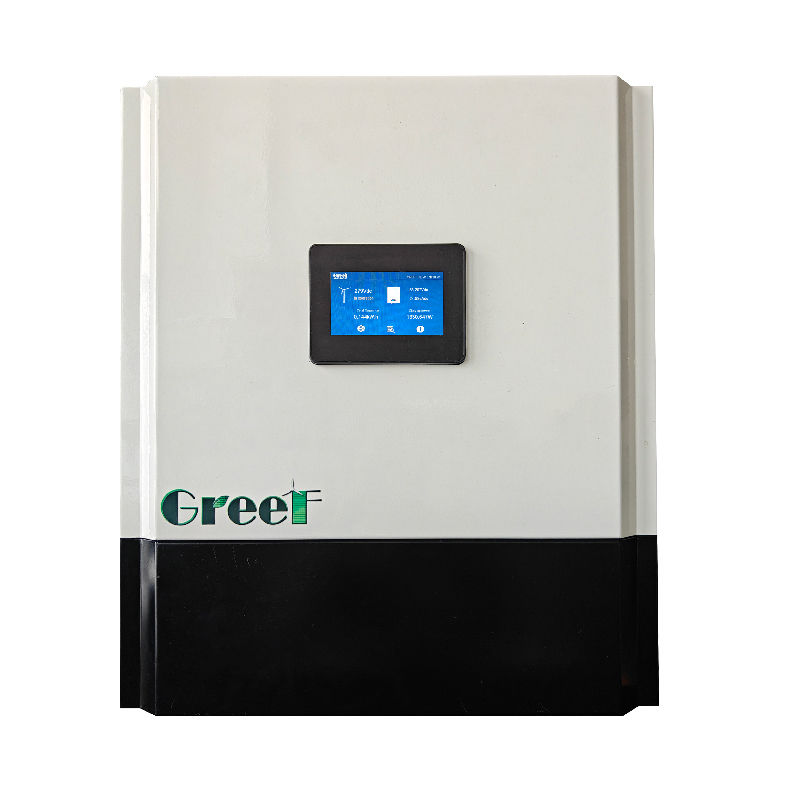

Name: 5-30kW MPPT Off-Grid Wind Charge Controller 48-380Vac
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: Ahcc
Price: 16,649.00 USD
Availability: InStock

Rumah > Produk > Alternator Magnet Permanen >

5-30kW MPPT Off-Grid Wind Charge Controller 48-380Vac

5-30kW MPPT wind charge controller

off-grid wind controller 48-380Vac

permanent magnet alternator charge controller

Tempat asal:

Cina

Nama merek:

Greef

Sertifikasi:

Nomor model:

Ahcc

Hubungi Kami

Minta Kutipan

Rincian produk

Tegangan Dinilai:

48VAC-380VAC

Perlindungan input:

Sekering; Sirkuit Perlindungan Petir

Kisaran tegangan MPPT:

90 ~ 520v disesuaikan

Metode pembongkaran:

PWM

Nilai Bongkar Arus:

40-100ADC

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1set

Harga

negotiable

Kemasan rincian

Kemasan

Waktu pengiriman

5-25 hari

Syarat-syarat pembayaran

L/C, D/A, D/P, Western Union, Moneygram

Menyediakan kemampuan

400set/set

Produk-produk terkait

Motor DC tanpa sikat dan teknologi drive magnet permanen Alternator Max 180C Tingkat suhu berliku

Dapatkan Harga Terbaik

Frekuensi 60/50Hz Kecepatan Putar Terukur 20--3000rpm Generator Magnet Permanen Dengan Teknologi Motor DC Tanpa Sikat Dan Penggerak

Dapatkan Harga Terbaik

Alternator pendingin air dengan motor DC tanpa sikat magnet dan teknologi drive untuk efisiensi tegangan nominal 48-1140Vac

Dapatkan Harga Terbaik

Teknologi Penggerak Motor DC Tanpa Sikat Alternator Magnet Permanen Dengan Resistensi Isolasi 100Mohm Min 500Vdc

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

5-30kW Off-grid Wind Charge Controller

Key Specifications

Attribute	Value
Rated voltage	48Vac-380Vac
Input protection	Fuses; lightning protection circuits
MPPT voltage range	90~520V customized
Unloading method	PWM
Rated unloading current	40-100Adc

Product Overview

The GREEF off-grid wind charge controller is a critical component in wind power systems, converting three-phase AC current from wind turbines into DC current to charge battery banks. Featuring advanced MPPT technology, this controller maximizes electricity production through innovative design elements including modular construction, electrical isolation, PWM unloading, and host computer control.

Advanced Features

Power tracking: 98% engagement with actual wind energy output curve for enhanced generation
Computer control: RS485 Modbus RTU interface for real-time voltage and current regulation
Safety protection: Comprehensive safeguards against over-voltage, over-current, reverse connection, and short circuits
IoT functionality: Wired network connectivity with APP remote monitoring and data export capabilities
Custom power absorption: Modular, hot-swappable circuits with electrical isolation for load protection
PWM unloading: Self-powered fan mode with soft unloading adjustment to reduce turbine burden
Touch screen interface: Real-time display of operational parameters with historical data logging and alarm functions

Technical Parameters

Model	AHCC-5KW	AHCC-10KW	AHCC-20KW	AHCC-30KW
Rated power	5KW	10KW	20KW	30KW
DC Output Specifications
Energy storage compatibility	Lead-acid batteries, lithium batteries, DC bus bars
Output voltage range	42-240Vdc (adjustable)		200-1000Vdc (adjustable)
Wind Turbine Input Specifications
MPPT voltage range	90~520V customized		220~530Vac
Maximum power	10kW	20kW	40kW	60KW
Environmental Specifications
Operating temperature	-25℃ to 50℃
Storage temperature	-40℃ to 75℃
Altitude rating	3000m full load output

Product Images

System Solutions

We provide customized system solutions tailored to your specific requirements. Contact us for more information about our products.
